VFG series inverter pressure pump with variable frequency drives, it used for adjusting flow or pressure to the actual demand. They control the frequency of the electrical power supplied to pumps or fans. Significant power savings can be achieved when using a VFD pump.
Salida disponible :
0.75HP ; 1.0HP; 1.3HPVoltaje/Hz :
220V/ 50/60HZCaja de control :
Standard control boxServicio personalizado :
YES, Brand/ Logo/ User manual/ Unit BoxPedido MOQ :
50PCSPlazo de entrega :
30 DaysGarantía :
12 MonthsVFG High flow Intelligent Inverter Constant Pressure Variable Frequency Water Pump
Product Features:
1.Over flow parts are 304 stainless steel, in line with drinking water sanitation standards;
2.Shaft seal for the mechanical seal, different media choose the friction accordingly;
3.F Class insulation, IP54 protection grade;

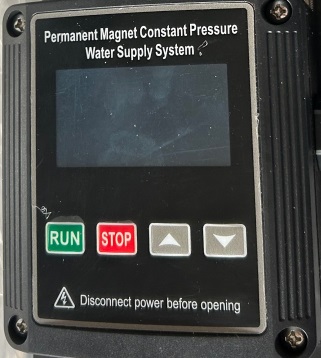

4.Supporting LCD display human-machine interface, simple operation;
5.Equipped with industrial -grade pressure sensors;
6.Multiple pumps can be networked online.
It is suitable for domestic water supply of various types of water works, pressure stations,hotels, residential areas and other high-rise buildings.
Constant pressure
Energy saving
Comfortable

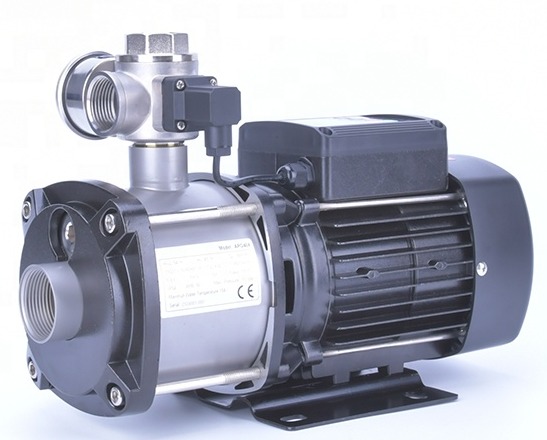

Stainless steel pump body,
Stainless steel impeller,
304 welding shaft,
silicon carbide to graphite mechanical seal,

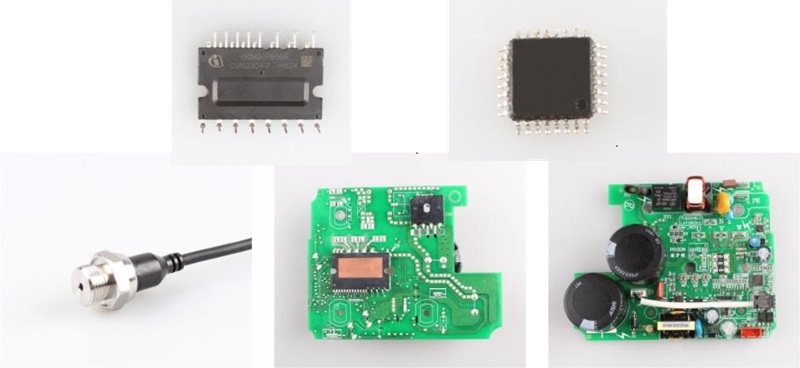

Sensata pressure sensor,
stainless steel five-way,
stainless steel oil pressure gauge,
IP54
Operating Condition:
Liquid temperature: High temperature(0℃~+100℃)
Environment temperature:≤40℃
Technical Data:
|
Model |
Voltage |
Power |
Speed |
Flow (m3/h) |
Head (m) |
Inlet/Outlet |
|||
|
V/ HZ |
KW |
HP |
RPM |
Max. |
Rated |
Max. |
Rated |
||
|
VFG203 |
220V 50/60HZ |
0.55 |
0.75 |
3450 |
5.0 |
2 |
41 |
37 |
G1" |
|
VFG204 |
220V 50/60HZ |
0.75 |
1 |
3450 |
5.3 |
2 |
54 |
45 |
G1" |
|
VFG403 |
220V 50/60HZ |
0.75 |
1 |
3450 |
6.4 |
4 |
40 |
30 |
G1.25"/G1" |
|
VFG404 |
220V 50/60HZ |
1.0 |
1.3 |
3450 |
7.8 |
4 |
54 |
42 |
G1.25"/G1" |
WHY CHOOSE OUR PUMPS?
Permanent magnetic synchronous motor
High speed,high efficiency,low energy consumption Permanent magnet high speed motor,small size and high efficiency,energy conservation and environment protection
Choose the famouse brand- Sensata pressure sensor for suitable our pumps, with top material electric parts.
Our Certificates
Frequently Asked Questions
Q1: Is the VFG pump easy to install?
A1: Yes, the pump is designed with a plug-and-play structure. It comes pre-wired and factory-configured, requiring only standard pipe and power connections. No special tools are needed.
Q2: Is the VFG pump is self-primting pump?
A2: No, it is not the self-primting pump; it is inverter water pump.
Q3: Can I control the pump remotely?
A3: No, the pump did not supports smartphone APP control now, we will cosnider to design the APP in next step
Q4: How often does the pump need maintenance?
A4: The pump requires minimal maintenance. Under normal conditions, we recommend checking the impeller, seals, and electrical connections every 6 to 12 months.

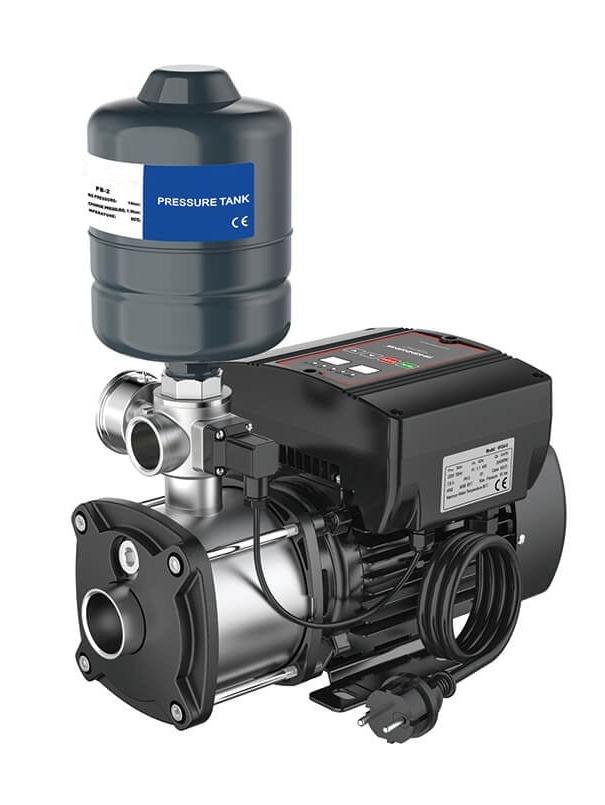

Q5: Does the pressure tank is incuding the set?
A5: Yes, the pressure will be including for this model, no need purchase the tank additional
Q6: What is the lead time for MOQ (50pcs)?
A6: 15-20 days, depends on the requirements of order, if the packing is neutral packing without special request, we will make sure it will be ready in 20 days
