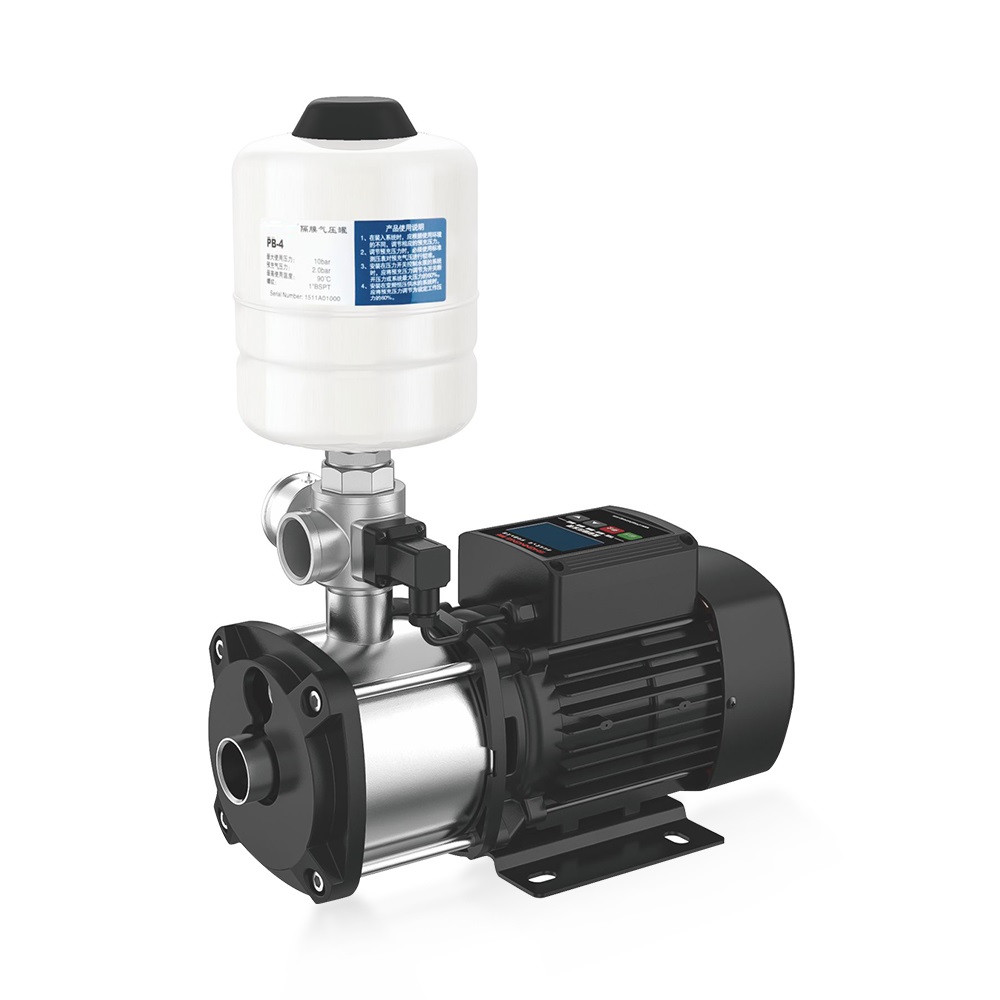

APG Constant Pressure Permanent Magnetic Variable Frequency Pump, is one of intelligent water pump with pressure tank we provide, the pump with PMSM motor; low noise; high efficient, and constant pressure supply.
Salida disponible :
1.0HP; 1.3HP; 1.6HPVoltaje/Hz :
110V; 220V; 50/60HZCaja de control :
Standard control boxServicio personalizado :
YES, Brand/ Logo/ User manual/ Unit BoxPedido MOQ :
50pcsPlazo de entrega :
30 DaysGarantía :
12 MonthsAPG Constant Pressure High Flow Permanent Magnetic Variable Frequency Pump
Product Features
1. The system adopts rare earth permanent magnet synchronous motor, ultra-high energy efficiency, ultra-low power consumption
Ultra-high energy efficiency, Ultra-low power consumption design, 30% more efficient than standard induction motors
Standby power as low as 1W, Smart sleep mode activation, Meets international energy-saving standards
2. Motor insensitive drive technology (FOC), fully realize the zero maintenance of the motor system;
Field-Oriented Control (FOC) implementation，Zero maintenance motor system，Adaptive to voltage fluctuations (±15%)
The rotor shaft uses stainless steel welding technology to ensure that over-water components never rust
3. Pressure Tank System
Integrated core diaphragm using IIR (Isobutylene-Isoprene Rubber),Long life material design, over 50,000 cycle durability
4. Supporting LED display human-machine interface, simple operation;
Easy operating, with Real-time pressure/flow monitoring
ABS casing, stainless steel pump body, stainless steel impeller, 304 welded shaft, silicon carbide to graphite mechanical seal, Sensata pressure sensor, IP54
Permanent magnetic synchronous motor, insensitive FOC vector drive technology, diaphragm pressure tank technology, check valve to eliminate water hammer.
Operating Condition:
Liquid temperature: High temperature(0℃~+100℃)
Environment temperature:≤40℃
Technical Data:
|
Model |
Voltage |
Power |
Speed |
Flow (m3/h) |
Head (m) |
Suction |
Inlet/Outlet |
|||
|
V/ HZ |
KW |
HP |
RPM |
Max. |
Rated |
Max. |
Rated |
m |
||
|
VFG203 |
220; 50/60 |
0.55 |
0.75 |
3450 |
5.0 |
2 |
41 |
37 |
NO |
G1" |
|
VFG204 |
220; 50/60 |
0.75 |
1 |
3450 |
5.3 |
2 |
54 |
45 |
NO |
|
|
VFG403 |
220; 50/60 |
0.75 |
1 |
3450 |
6.4 |
4 |
40 |
30 |
NO |
G1.25"/G1" |
|
VFG404 |
220;50/60 |
1.0 |
1.3 |
3450 |
7.8 |
4 |
54 |
42 |
NO |
|
WHY CHOOSE OUR PUMPS?
Permanent magnetic synchronous motor
High speed,high efficiency,low energy consumption Permanent magnet high speed motor,small size and high efficiency,energy conservation and environment protection
Choose the famouse brand- Sensata pressure sensor for suitable our pumps, with top material electric parts.
Our Certificates
Frequently Asked Questions
Q1: Is the APG pump easy to install?
A1: Yes, the pump is designed with a plug-and-play structure. It comes pre-wired and factory-configured, requiring only standard pipe and power connections. No special tools are needed.
Q2: Is the APG pump is self-primting pump?
A2: No, it is not the self-primting pump; it is inverter water pump.
Q3: Can I control the pump remotely?
A3: No, the pump did not supports smartphone APP control now, we will cosnider to design the APP in next step
Q4: How often does the pump need maintenance?
A4: The pump requires minimal maintenance. Under normal conditions, we recommend checking the impeller, seals, and electrical connections every 6 to 12 months.
Q5: Does the pressure tank is incuding the set?
A5: Yes, the pressure will be including for this model, no need purchase the tank additional
Q6: What is the lead time for MOQ (50pcs)?
A6: 15-20 days, depends on the requirements of order, if the packing is neutral packing without special request, we will make sure it will be ready in 20 days
