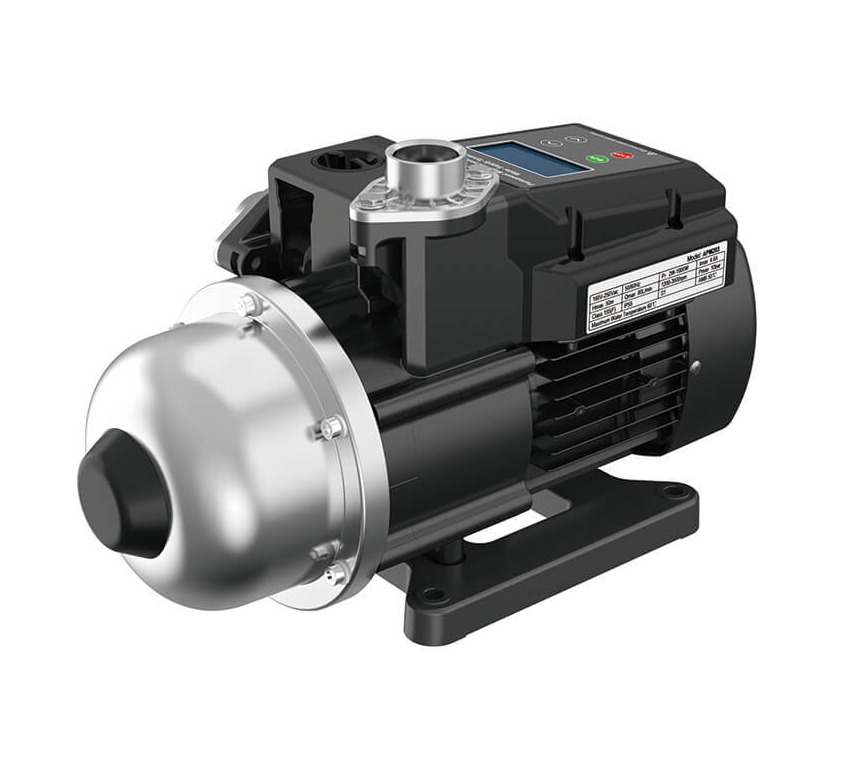

APM Permanent magnetic variable frequency pump, a cutting-edge solution for your water system needs. Designed with a powerful permanent magnet synchronous motor, this pump provides unparalleled efficiency and reliability.Sometimes we face low water pressure at home, APM inverter pump system supply with good pressure and constant pressure to meet you and your family daily needs, even with multiple taps running concurrently
Salida disponible :
1.0HP ; 1.3HPVoltaje/Hz :
110V, 220V; 50/60HZCaja de control :
Standard BoxServicio personalizado :
Yes, Brand/ Logo/ User manual/ Unit BoxPedido MOQ :
50PcsPlazo de entrega :
20 DaysGarantía :
12 MonthsAPG Constant Pressure High Flow Permanent Magnetic Variable Frequency Pump
Product Features
1.The system adopts rare earth permanent magnet synchronous motor, ultra-high energy efficiency, ultra-low power consumption;
2. As low as 1W of standby power design, so that energy-saving technology can be perfectly presented;
3. Motor insensitive drive technology (FOC), fully realize the zero maintenance of the motor system;
4. The rotor shaft uses stainless steel welding technology to ensure that over-water components never rust;
5. Integrated pressure tank core disphragm using IIR material;
6. Supporting LED display human-machine interface, simple operation;
7. Equipped with industrial-grade pressure sensors;
8. System integration reverse valve structure;
9. A constant pressure control system designed for the home to achieve a complete constant water pressure.
ABS casing,
stainless steel pump body,
stainless steel impeller,
304 welded shaft,
silicon carbide to graphite mechanical seal,
Sensata pressure sensor,
IP54
Operating Condition:
Liquid temperature: High temperature(0℃~+100℃)
Environment temperature:≤40℃
Technical Data:
|
Mode |
Voltag |
Power |
Speed |
Flow (m3/h) |
Head (m) |
Suction |
Inlet/Outlet |
|||
|
V |
KW |
HP |
RPM |
Max. |
Rated |
Max. |
Rated |
m |
||
|
APM202 |
220V 50/60HZ |
0.8 |
1.07 |
3600 |
4.5 |
2 |
32 |
24 |
non |
G1" |
|
APM203 |
220V 50/60HZ |
1.0 |
1.3 |
3600 |
4.8 |
2 |
45 |
37 |
non |
G1" |
|
APM204 |
220V 50/60HZ |
1.0 |
1.3 |
3600 |
5.0 |
4 |
60 |
49 |
non |
G1" |
|
APM203 |
110V /60HZ |
0.8 |
1.07 |
3600 |
4.8 |
2 |
45 |
36 |
non |
G1" |

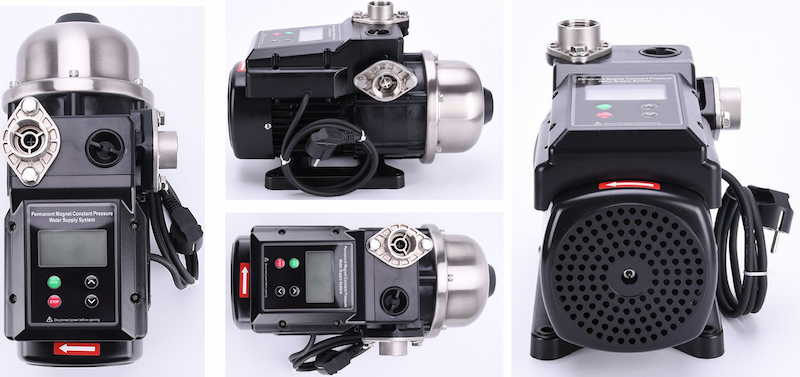

Detials of Pump:
WHY CHOOSE OUR PUMPS?
Our Certification:
