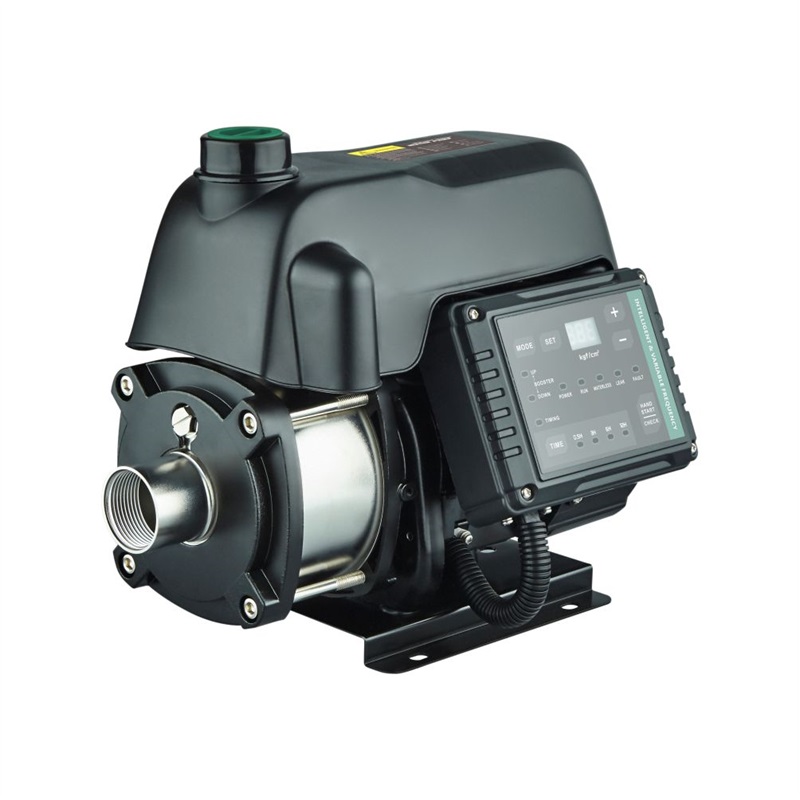

The CHM series Inverter Water Pump - the epitome of cutting-edge technology in the field of water management.
Designed with the utmost precision, this exceptional pump is equipped with a remarkable constant pressure feature, allowing you to effortlessly fine-tune the water pressure according to your needs. Its wide range of adjustable pressure settings ensures a seamless and tailored water flow experience, while simultaneously conserving energy.
Salida disponible :
0.5HP / 1.0HP / 2.0HPVoltaje/Hz :
110V / 220V ; 50/60HzCaja de control :
Button type / Touch Screen LCD type with WIFIServicio personalizado :
YES, Brand/ Logo/ User manual/ Unit BoxPedido MOQ :
50 PCSGarantía :
12 Months
Product Features:
The Permanent Magnet Variable Frequency Stainless Steel Multi-stage Centrifugal Pump.With features high efficiency, low noise, mild corrosion resistance, compact structure, attractive appearance, small size, and lightweight design. It integrates multiple automatic protections, automatic fault code display, and pipeline leakage/low water level indicators, ensuring safer operation and easier maintenance.
Combining three operational modes: "top pressurization," /"bottom pressurization," / "water tower replenishment" —each with distinct software parameter settings, this pump delivers revolutionary improvements and exceptional user experience.
Applications: Suitable for pumping low-viscosity, neutral, non-explosive liquids free of solid particles or fibers. The conveyed liquid must not chemically corrode pump materials (specialized models can handle oil-based fluids). Applications include: Air conditioning system circulation; cooling systems; water treatment (purification); industrial cleaning systems; liquid transportation, circulation, and lifting; hot/cold water supply; food/beverage/agricultural ingredient systems.
Advantage:
Operating Condition:
PH 5-8;
Ambient temperature 0-40°C;
Relative humidity ≤85% (RH);
Medium temperature 0-60°C
Insulation: B
Portection: IPX4
3 WORKING MODES SUITABLE FOR ALL BOOSTING NEEDS IN THE HOUSEHOLD
Booster up: Automatic control by pressure increases the pressure immediately when the taps are opened
Booster down: Automatic increases the downward pressure of water from the roof tank or over-head tank.
Timing/filling the tank: Pumping water from the ground tank/city mains to the roof tank by timing, avoiding start & stop frequently
Top material and spare parts and control panel
Technical Data:
|
Model |
Voltage |
Power |
Current |
Speed |
Flow (m3/h) |
Head (m) |
Inlet/Outlet |
|||
|
V / HZ |
HP |
KW |
A |
RPM |
Max. |
Rated |
Max. |
Rated |
||
|
CHM2-2DC |
220, 50/60 |
0.5 |
0.37 |
2.5 |
4500 |
4.4 |
1.5 |
38 |
25 |
1"x1" |
|
CHM4-2DC |
220, 50/60 |
1 |
0.75 |
6.2 |
4000 |
8 |
4 |
37 |
30 |
1 1/4"x1" |
|
CHM4-3DC |
220, 50/60 |
2 |
1.5 |
6.5 |
4000 |
8 |
4 |
55 |
45 |
1 1/4"x1" |
|
CHM4-2DC-LW |
220, 50/60 |
1 |
0.75 |
6.2 |
4000 |
8 |
4 |
37 |
30 |
1 1/4"x1" |
|
CHM4-3DC-LW |
220, 50/60 |
2 |
1.5 |
6.5 |
4000 |
8 |
4 |
55 |
45 |
1 1/4"x1" |
Installation Dimensions:
3 Working Modes(Option)
*BOOSTER UP *BOOSTER DOWN *TIMING
Our Certificates
Frequently Asked Questions
Q1: Is the CHM-DC pump easy to install?
A1: Yes, the pump is designed with a plug-and-play structure. It comes pre-wired and factory-configured, requiring only standard pipe and power connections. No special tools are needed.
Q2: What kind of liquids can this pump handle?
A2: The CHM-DC pump is suitable for clean water and light industrial liquids that are non-corrosive and free of solid particles. For slightly contaminated water, a pre-filter is recommended.
Q3: Can I control the pump remotely?
A3: Yes, the pump supports smartphone APP control.
You can remotely start/stop the pump, adjust pressure, switch working modes, and monitor system status in real time.
Q4: What are the available working modes?
A4: There are three modes: Booster Up, Booster Down, and Timing/Filling the Tank. You can select and set the desired mode easily via the control panel or the mobile app.
Q5: How often does the pump need maintenance?
A5: The pump requires minimal maintenance. Under normal conditions, we recommend checking the impeller, seals, and electrical connections every 6 to 12 months.
Q6: What happens if the pump runs dry or the voltage fluctuates?
A6: The built-in VFD controller includes dry-run protection, overload protection, and voltage fluctuation safeguards to prevent damage and ensure safe operation.
