APE Intelligent Self-priming Permanent Magnetic Motor Variable Frequency Pump

APE Intelligent Self-priming Permanent Magnetic Motor Variable Frequency Pump

Product Features

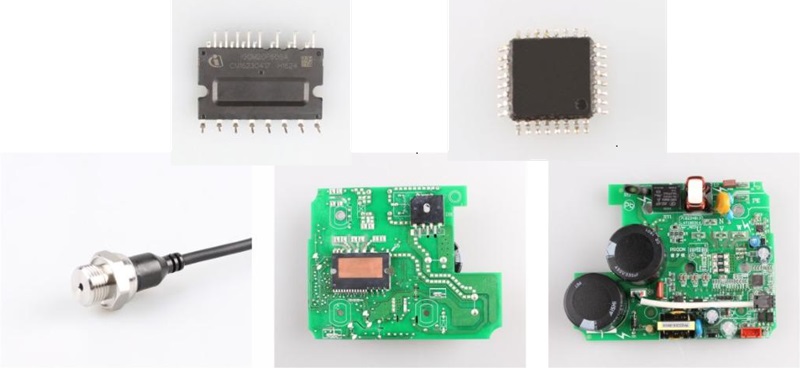

 1. Intelligent Frequency Conversion (VFD Control)

The APE series is equipped with an advanced Variable Frequency Drive (VFD) system, which automatically adjusts motor speed based on real-time water demand. This not only ensures constant water pressure but also significantly reduces energy consumption by avoiding unnecessary high-speed operation. It helps extend the motor’s service life and reduces operational costs over time.

 2. Self-Priming Function

With the self-priming capability, the pump can automatically evacuate air from the system and draw water into the impeller chamber without manual priming. This feature simplifies installation and startup, especially in environments where initial water levels are unstable or when dry-run protection is needed.

3. Multi-Stage Centrifugal Design for High Head & Stable Flow

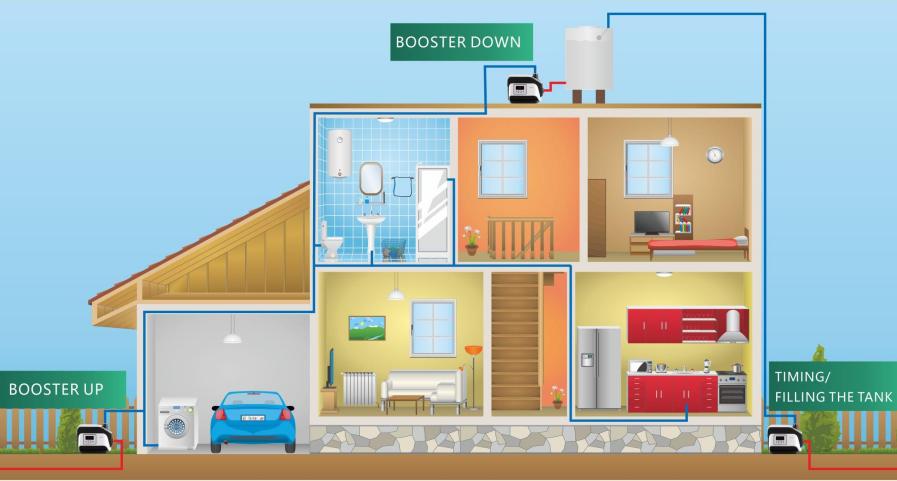

The APE utilizes a multi-impeller (multi-stage) centrifugal system that delivers high head (up to 42 meters) and consistent flow even at long distances or in vertically demanding applications. This design is ideal for pressure boosting in high-rise buildings, long piping systems, or precision-controlled irrigation systems.

4. Durable & Corrosion-Resistant Structure

The pump body and internal components are made from stainless steel and high-performance engineering plastics, offering strong resistance to rust, corrosion, and mechanical wear. This makes the APE pump suitable for a variety of clean water and light industrial fluid transfer tasks, even in challenging environments.

5. Low Noise, Smooth Operation

Designed with canopy, the pump operates quietly even under heavy load. This is ideal for indoor or residential use, where noise can be a critical factor in equipment selection.

Installation & Maintenance



• The APE pump features a plug-and-play design, making installation simple and efficient even for first-time users. It comes pre-wired and factory-tested,with standard UK, EU, US plug for different market; No specialized tools or complex configuration is needed during setup.



• The system is compatible with clean water and light industrial fluids that are non-corrosive and free of solid particles. For environments with stricter requirements, inlet filtration is recommended to extend service life.



• Each unit is equipped with a pre-configured VFD controller, suitable for most common applications. If you have specific operating parameters, custom programming or adjustment via the control panel is also supported, with easy-to-follow instructions.



• Maintenance is minimal — the pump is designed for long-term operation with occasional checks. We recommend periodic inspection of the impeller chamber, seals, and electrical connections every 6–12 months, depending on usage intensity.

Technical Data:
